Standard cell supply
Review chemistry, format and reference ratings. Confirm available models and current datasheets for each order.
PRIMARY LITHIUM / INDUSTRIAL APPLICATIONS
Primary lithium power.Built around your device.
Cell selection and application-specific assembly for metering, wireless devices and equipment backup.
Standard cell supplyApplication-specific assembly
ER / Li-SOCl₂Catalog reference
3.6 VER14505
ER26500 / ER34615
ER26500 / ER34615
RAMWAY supplier catalog, 2023 / PDF p.4
THE SUIDIAN APPROACH
The cell is the starting point.
Suidian distributes battery products and purchases cells for further assembly and resale. Supplier products and Suidian assemblies are identified separately.
Application-specific assembly
Define leads, connectors and arrangement against your device requirements, an approved drawing and sample evaluation.
PRODUCT FAMILIES / RAMWAY CATALOG
Find your starting point.
Supplier catalog range. Availability and current specifications require confirmation.

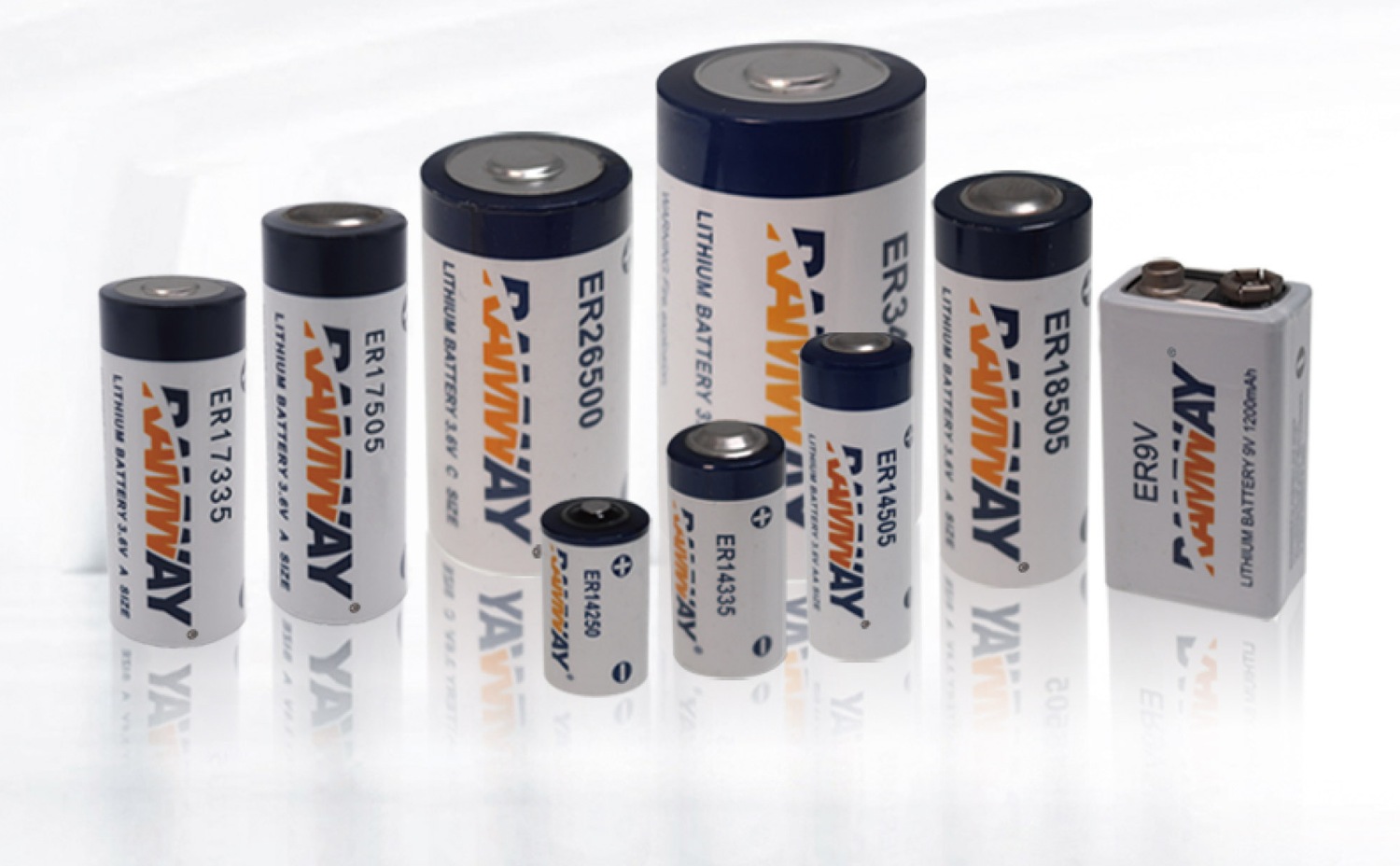

ER SERIES
Li-SOCl₂ cells
Bobbin, high-current and spiral types. Selected model references below.
Discuss this productRAMWAY / PDF p.4

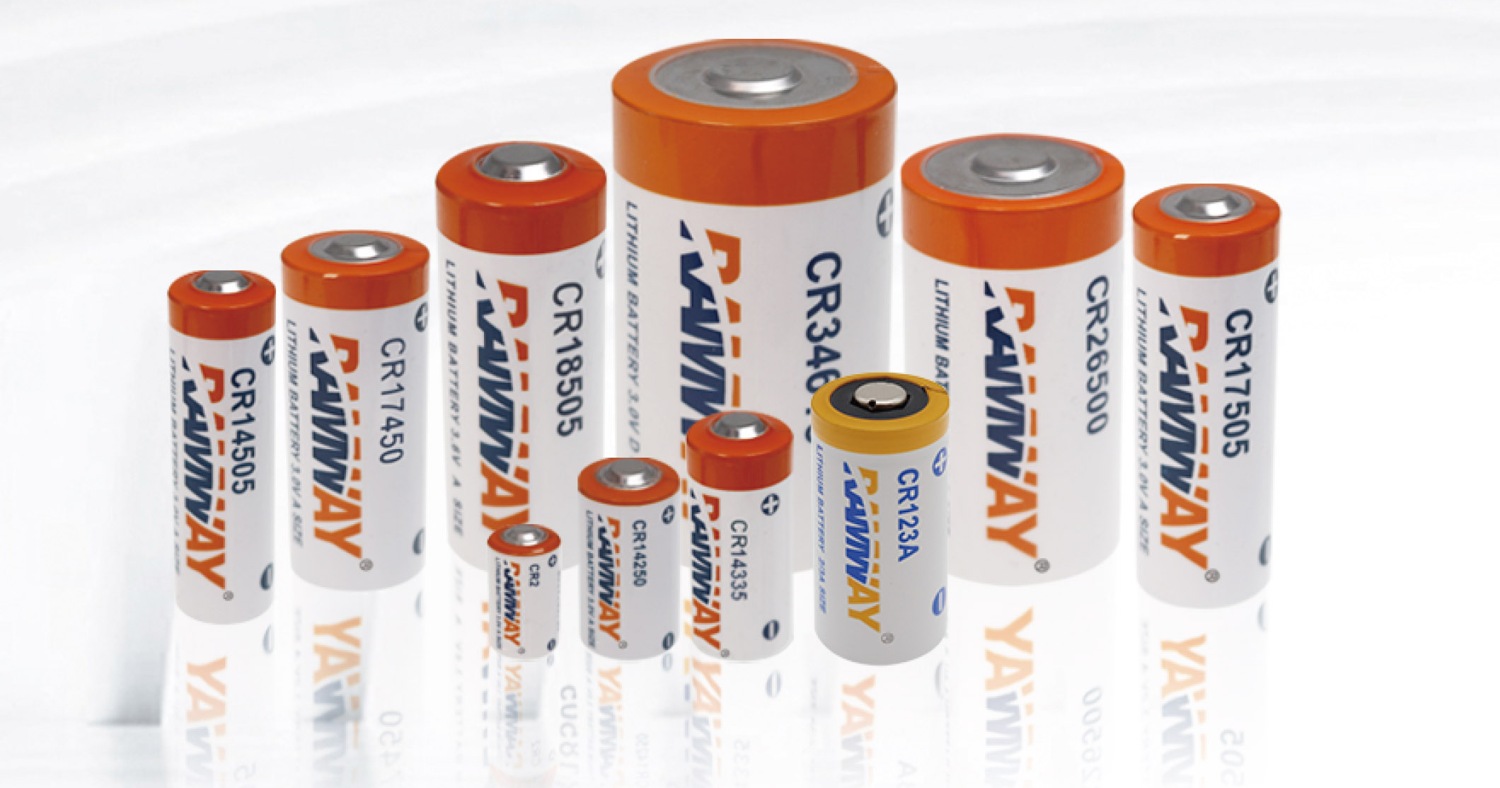

CR SERIES
Li-MnO₂ cylindrical cells
Cylindrical formats including CR123A and CR14505.
Discuss this productRAMWAY / PDF p.5

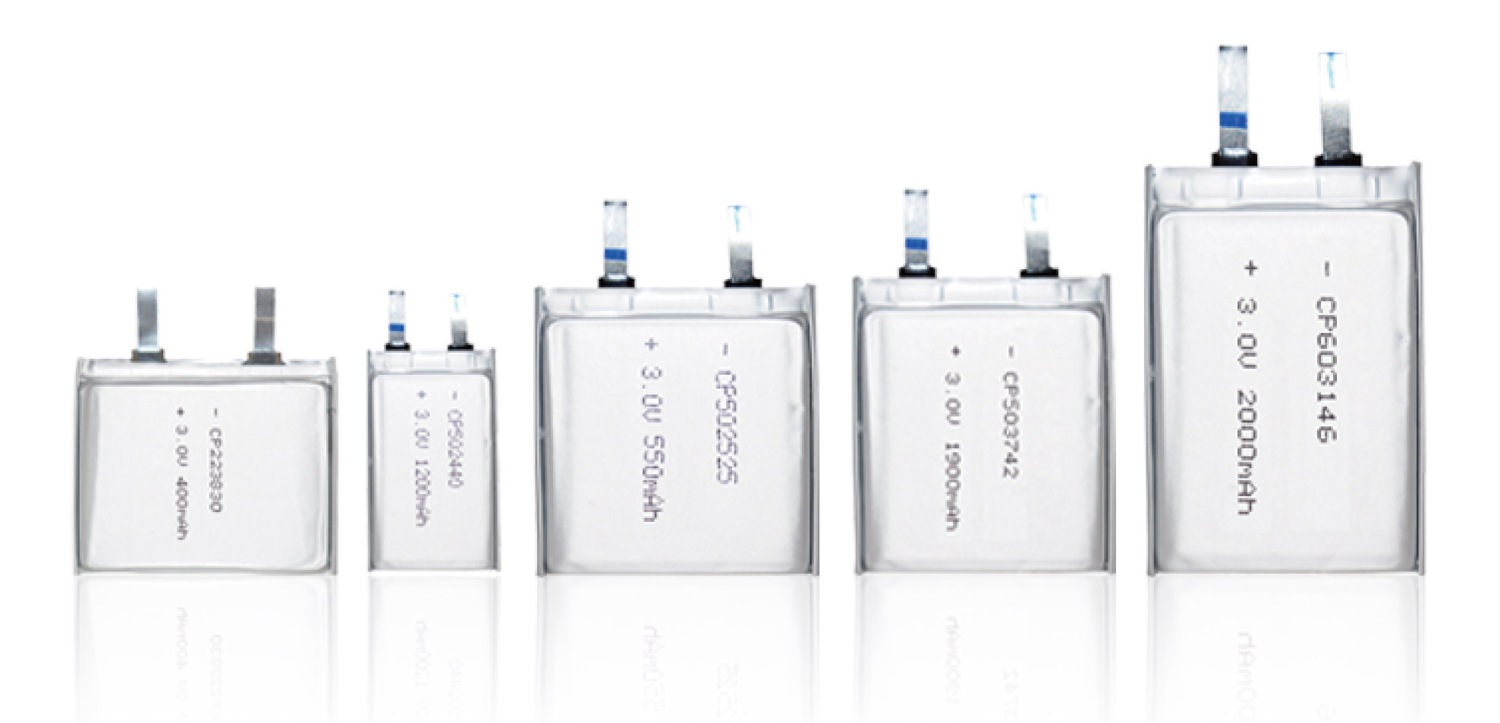

CP SERIES
Li-MnO₂ thin cells
Flat formats for projects with limited internal space.
Discuss this productRAMWAY / PDF p.5

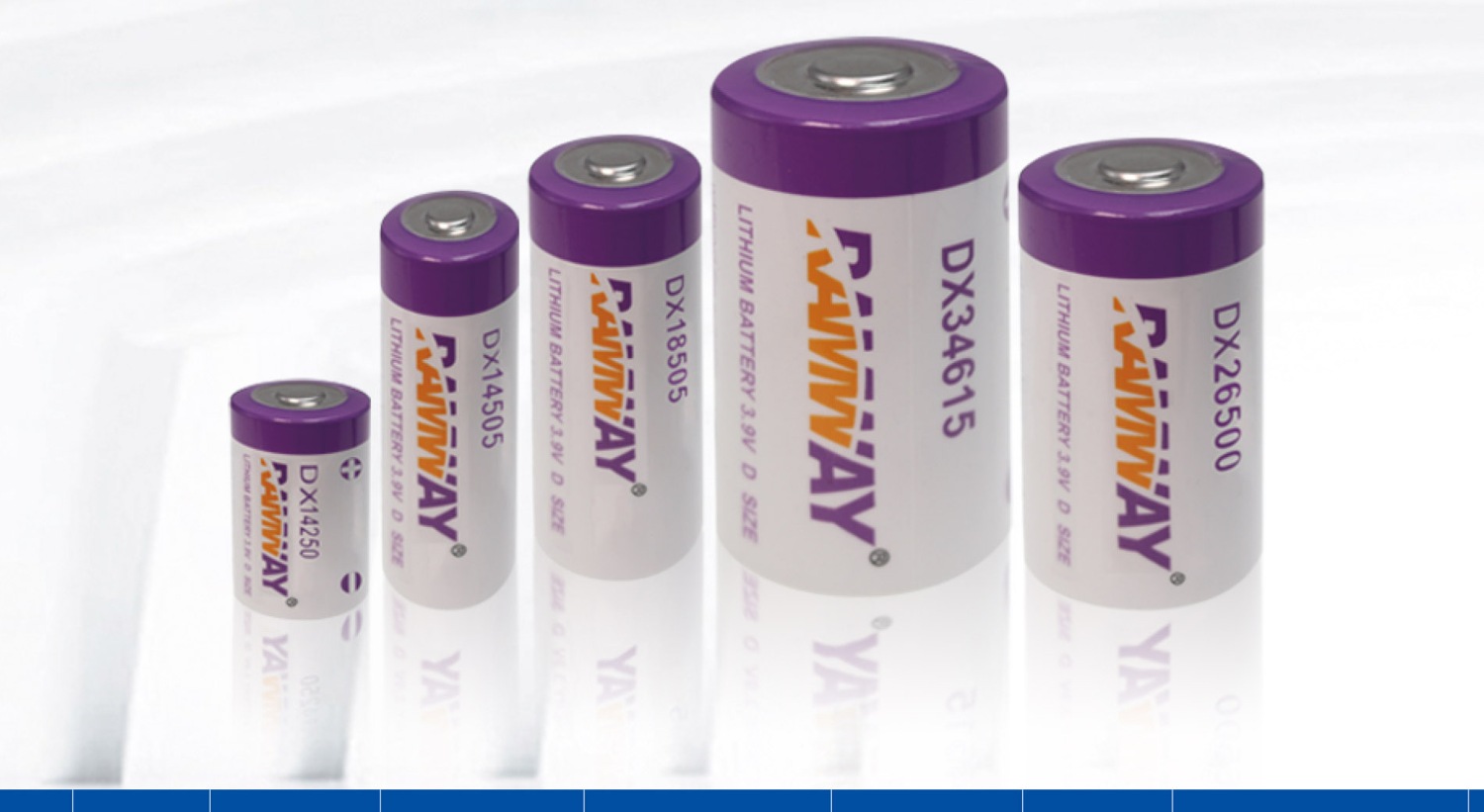

DX SERIES
Li-SO₂Cl₂ cells
Supplier-listed bobbin and spiral primary cells.
Discuss this productRAMWAY / PDF p.6

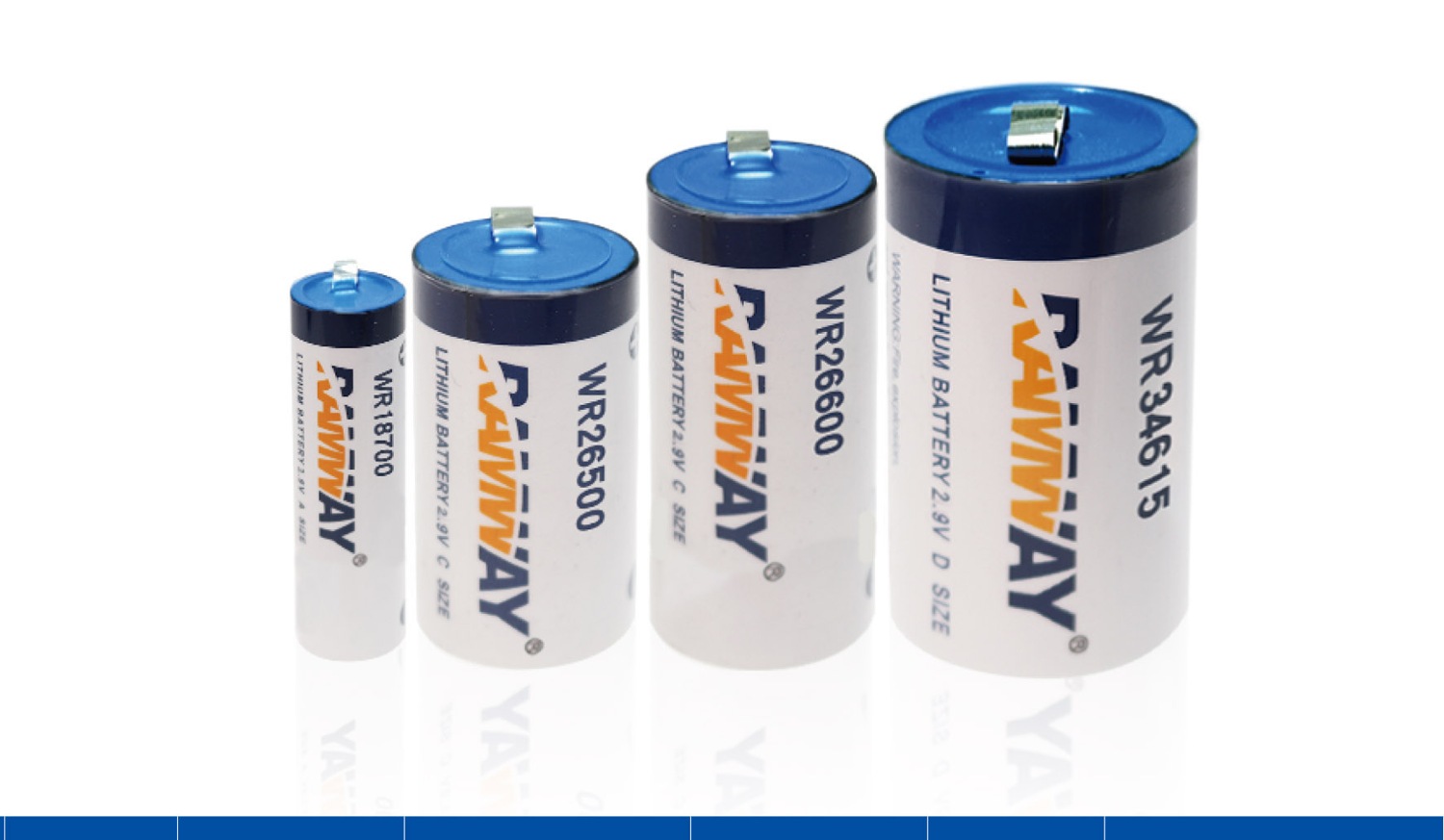

WR SERIES
Li-SO₂ cells
Cylindrical primary cell references from the supplier.
Discuss this productRAMWAY / PDF p.6

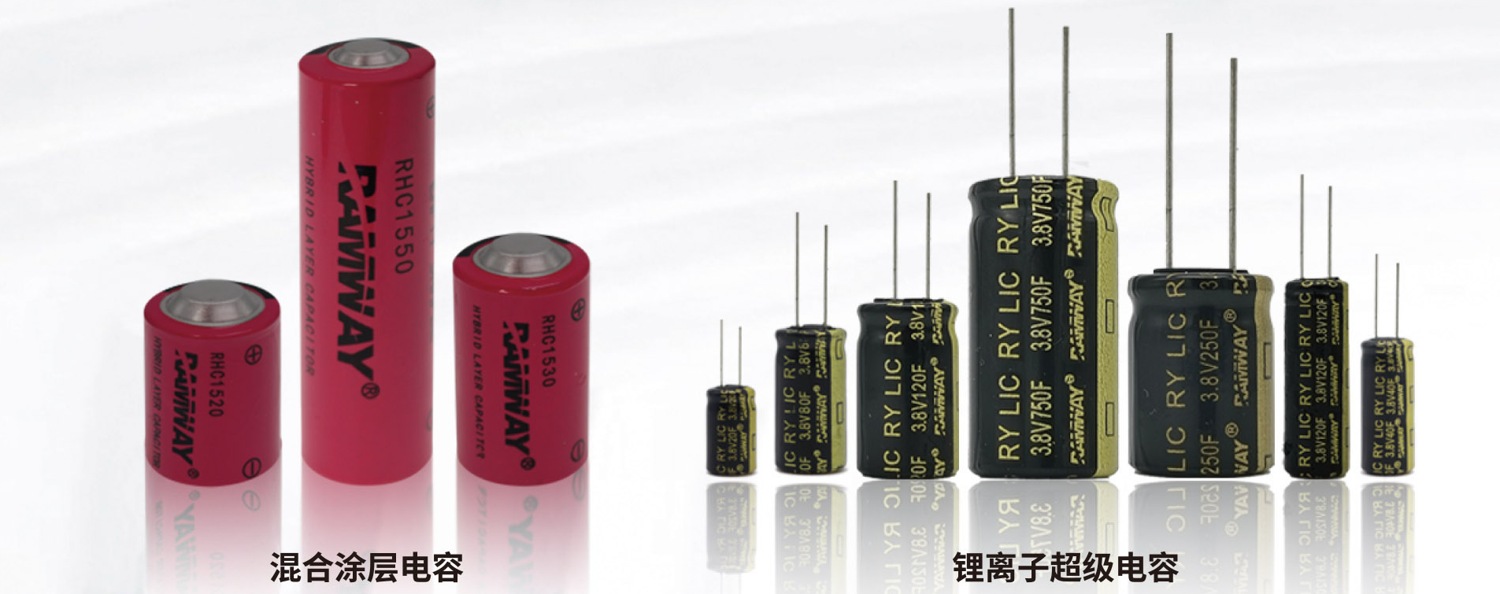

RHC / RY LIC
Hybrid & lithium-ion capacitors
Combination candidates to evaluate against the pulse load.
Discuss this productRAMWAY / PDF p.7
MODEL REFERENCES
Compare the essentials.
2023 catalog values. Confirm the latest datasheet, test conditions and final assembly before selection.
Swipe or scroll to compare all columns. The model stays visible.
| Model | Chemistry | Nominal voltage | Catalog capacity | Maximum size | Source |
|---|---|---|---|---|---|
| ER14505 | Li-SOCl₂ | 3.6 V | 2,700 mAh | Ø14.5 × 50.5 mm | RAMWAY / p.4 |
| ER26500 | Li-SOCl₂ | 3.6 V | 9,000 mAh | Ø26.2 × 50.0 mm | RAMWAY / p.4 |
| ER34615 | Li-SOCl₂ | 3.6 V | 19,000 mAh | Ø34.0 × 61.5 mm | RAMWAY / p.4 |
| CR123A | Li-MnO₂ | 3.0 V | 1,600 mAh | Ø17.0 × 34.5 mm | RAMWAY / p.5 |
| CP502440 | Li-MnO₂ | 3.0 V | 1,200 mAh | 41 × 25 × 5.2 mm | RAMWAY / p.5 |
Reference values are not a guarantee of delivered performance.

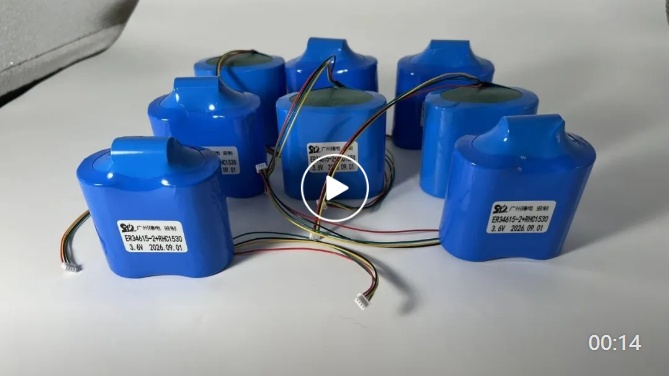

Suidian WeChat reference. Configuration, ratings and process scope require confirmation.
SUIDIAN / BATTERY ASSEMBLY
The connection matters.
Share your device requirements. Define the cell, interface and package together before sample evaluation.
- Electrical profile
- Voltage, average current, pulse peak and cut-off voltage.
- Physical interface
- Dimensions, cell layout, lead length, connector and polarity.
- Sample evaluation
- Drawing approval, test conditions and acceptance criteria.
APPLICATION REQUIREMENTS
Start with the duty cycle.
Application examples guide selection. Compatibility and operating life require device-specific evaluation.
Water & gas metering
Transmission interval, pulse load, temperature and life target.
IoT & wireless sensors
Communication load, available space and environmental limits.
Industrial equipment backup
Equipment model, original battery, voltage, connector and polarity.
QUALITY / PRODUCT DOCUMENTATION
Evidence for the exact configuration.
Match the documents to your model, assembly and intended shipment.
Cell data
Current datasheet, test curves, dimensions and supplier identification.
Assembly records
Approved drawing, sample results, acceptance criteria and batch reference.
Shipment documents
Applicable safety and transport files covering the final product and packaging.
Document request checklist. This preview does not claim company certification or market approval.
YOUR NEXT PROJECT
Put your requirements on paper.
Choose the application and describe your device. Download a technical brief to review with your team.
